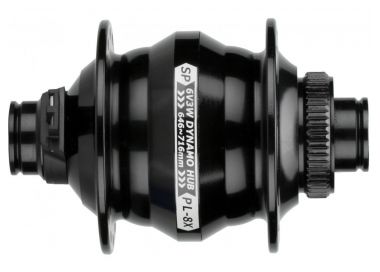

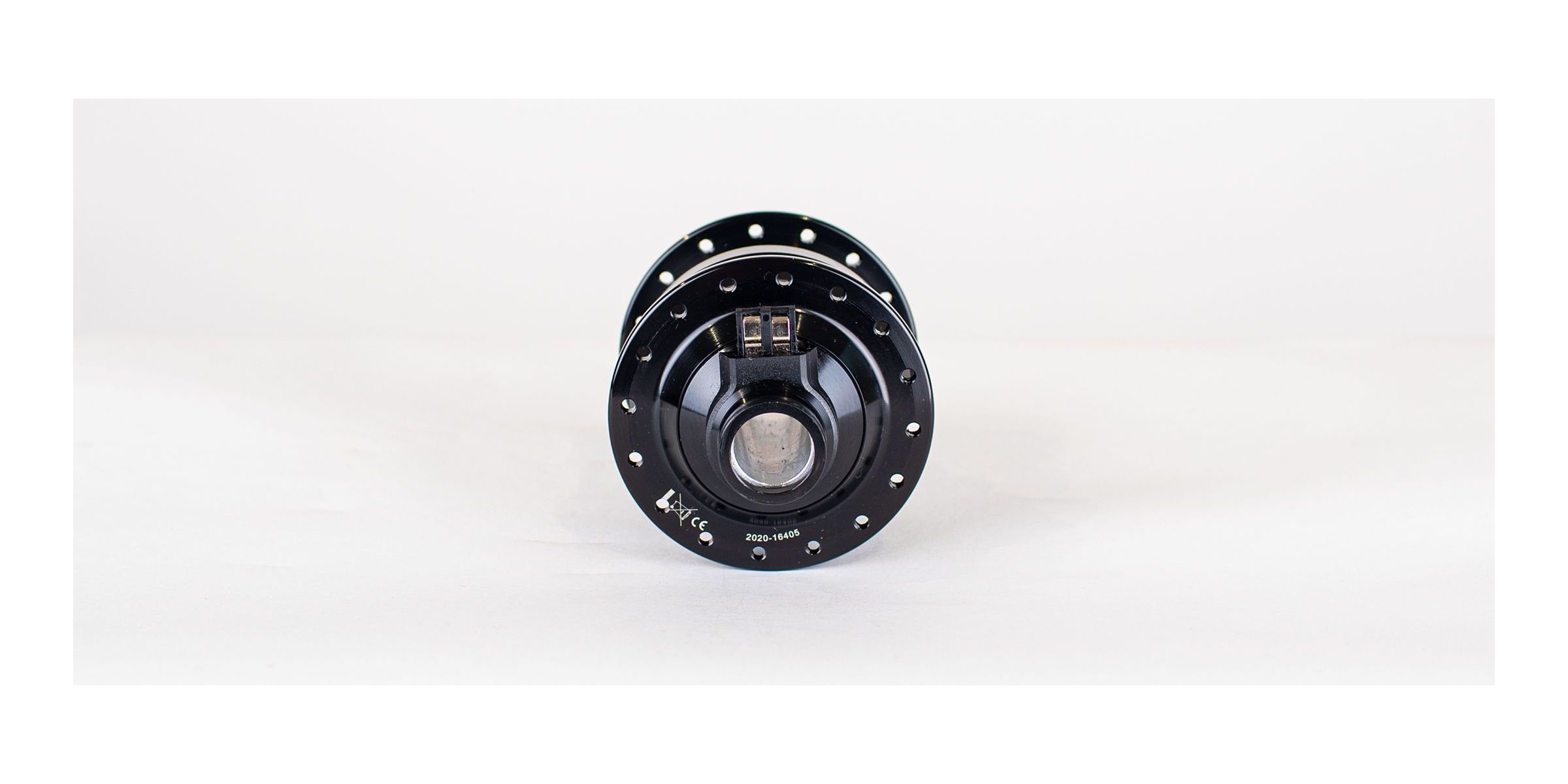

To make the hub dynamo interesting to a wider audience, Shutter Precision has developed a center-locking version for the 8X series. The PL-8X is ideal for center locking disc brakes and is officially licensed from Shimano. The PL-8X achieves 78% efficiency at 15 km / h. But not only is it powerful ... the PL-8X is also very smooth. In keeping with Shutter Precision's design philosophy, its appearance is simple, sleek and aerodynamic.
Specifications:
Series: 8X, P series
Application: Tourism and trekking, city, mtb, road
Electric power: 6V / 3W (according to StVZO)
Efficiency: 78% @ 15km / h for 28 '' bike.
Installation width: 15 x 100 mm thru axle
Number of holes: 32 holes
Braking system: disc central locking
Specifications:
Hub housing material: aluminum
Flange spacing (L / R): 50mm (25mm / 25mm)
Pitch Circle Diameter (L / R): 58mm / 58mm
Needle hole diameter: 2.7 mm
Connection for current output: plug, 2-pin
Compatibility: For impeller diameters 646 to 716 mm (26 "-29")
Functions:
The bearings are narrower and therefore less durable than the 8 Series.
Double seal
Flange diameter 66 mm on both sides
Maximum hub diameter 59mm
Can optionally be converted into a 9 x 100 mm quick release mechanism.
Equipment:
1 hub dynamo Shutter Precision PL-8X
1 x connector
Weight: 410 g
