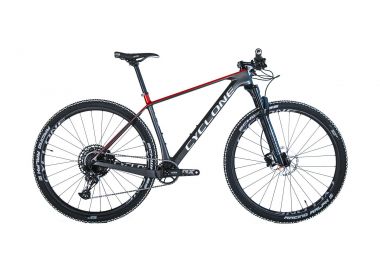

HARDTAIL FOR FAST AND AGGRESSIVE OFF-ROAD RIDING
Modern geometry, a steep body kit and a durable carbon frame with internal wiring make the CYCLONE PRO 1.0 the perfect piece of equipment for tackling technical trails in cross-country racing. This hardtail features a progressive geometry with a low top tube, plush suspension fork. Make steep climbs with a smooth ride.
QUALITY COMPONENTS
The 1x12 Sram NX Eagle groupset and high-quality aluminum wheels fitted with Schwalbe Racing Ralph tires combined with a comfortable WTB Volt saddle make the PRO 1.0 the perfect choice for long-distance touring or cross-country racing.
RELIABLE FORK
Rock Shox Recon Gold RL 29 with 100mm of travel features a 15mm MaxleLite axle and Motion Control RC damper. DebonAir technology has an extremely low breakaway torque for maximum responsiveness right from the start.
CONTROLLED BRAKING
We equipped the CYCLONE PRO 1.0 with Shimano Deore MT501 hydraulic disc brakes - a guarantee of safe controlled braking even in poor conditions and on rough terrain.
MORE CONTROL ON THE ROUTES
Wider dropout spacing (110mm front / 148mm rear) results in more rigidity. 3D Boost 12x148mm and 69.8º head angle provide a combination of confidence and stability at high speeds for steep and challenging terrain.
NEW MODERN FRAME
High strength CYCLONE premium carbon frame construction with high rigidity. The rear triangle and seat tube area absorb shock for better traction, faster speeds and less fatigue, whether you're sitting or standing.
INTERNAL WIRING
All cables and hydraulic lines are hidden inside the frame, which gives the bike a more attractive and neat appearance. It also helps your wiring last longer by protecting it from dirt and moisture.
- Frame
- High quality Japanese TORAYCA® T800 carbon fiber, internal wiring of all lines, asymmetrical feathers, rear hub under BOOST (12x148mm), low geometry
- Fork
- Rock Shox Recon Gold RL 29" DebonAir 100mm, 15x110 MAXLE
- Rear derailleur
- Sram NX Eagle, 12 speed
- Shifter
- Sram NX Eagle, 12 speed
- Chain
- Sram NX Eagle
- Crankset
- Sram NX Eagle, crank length 170mm, 34T
- Cassete
- Sram NX Eagle (PG-1230), 12 speed, 11-50T
- Bottom bracket
- Sram DUB PRESSFIT MTB 92
- Brakes
- Shimano Deore MT501, hydraulic discs, Shimano RT-64 rotor 180/160 mm
- Rims
- Double tubeless profile, 28sp
- Tires
- Schwalbe Racing Ralph 29x2.1"
- Hubs
- KT-T55F front: 15x110 28sp, sealed bearings; KT-TX8R back 12x148 28sp, sealed bearings
- Handlebar
- Aluminum, ø31.8mm, width 700mm
- Stem
- Aluminum, ø31.8mm, length 80mm
- Seatpost
- Aluminum, ø27.2mm, length 350mm
- Saddle
- WTB Volt
- Pedals
- VP-536
- Box Size
- 150 x 20 x 85см
Pro Bicycle Group reserves the right to make changes to the product package.
| № | Parameter | 17" | 19" |
| 1 | Top tube length | 595mm | 620mm |
| 2 | Seat tube | 430mm | 482mm |
| 3 | Seat tube angle | 74° | 74° |
| 4 | Head tube length | 85mm | 95mm |
| 5 | Head tube angle | 69.8° | 69.8° |
| 6 | Fork offset | 51mm | 51mm |
| 7 | Chain stay length | 425mm | 425mm |
| 8 | BB Drop | 61mm | 61mm |
| 9 | Wheelbase | 1090mm | 1115mm |
| 10 | Seat tube (clamp diameter) | 32mm | 32mm |
| 11 | Seat post | 27.2mm | 27.2mm |
| 12 | Stack | 600mm | 610mm |
| 13 | Reach | 423mm | 445mm |
Pro Bicycle Group reserves the right to make changes to the product package.
