CARBON GRAVEL. WITHOUT MANY WORDS..
- Frame

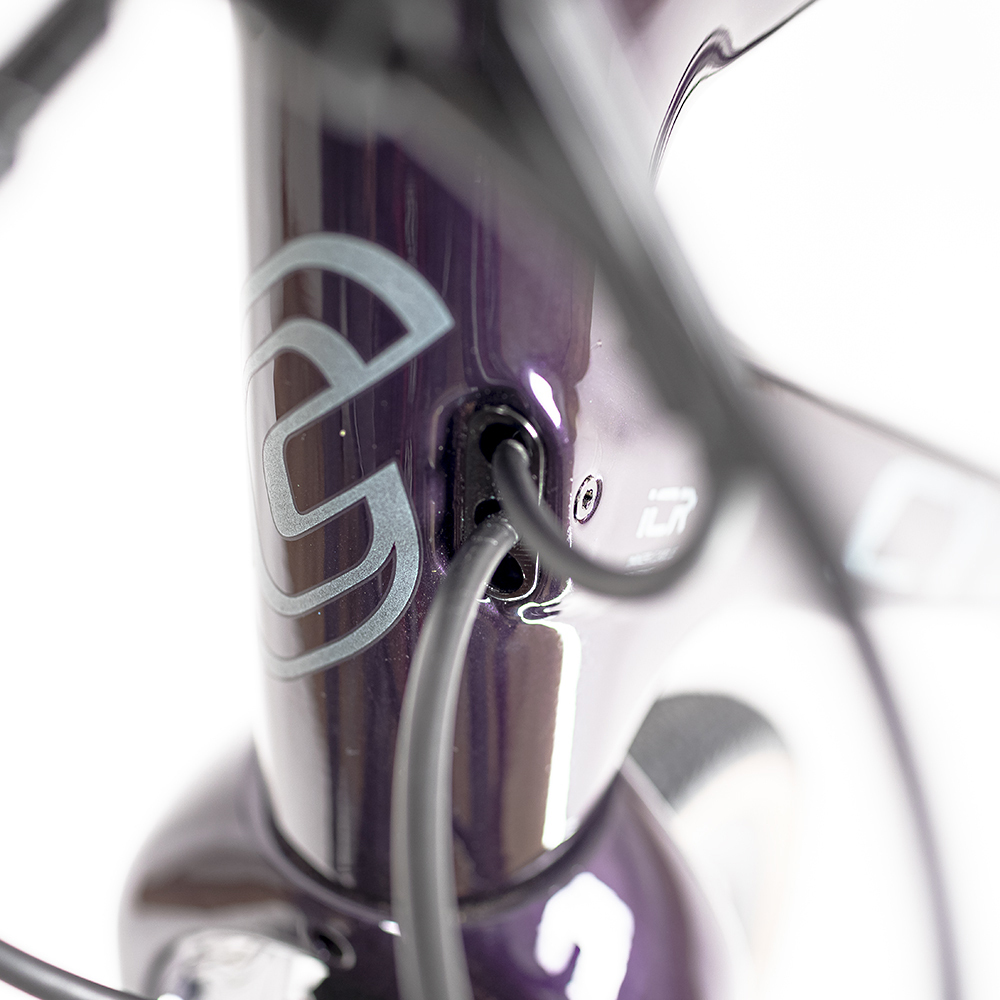

- High quality Japanese TORAYCA® T800 carbon fiber, internal wiring of all lines, asymmetrical feathers, rear hub under 12x142mm, comfortable geometry, large mud gaps

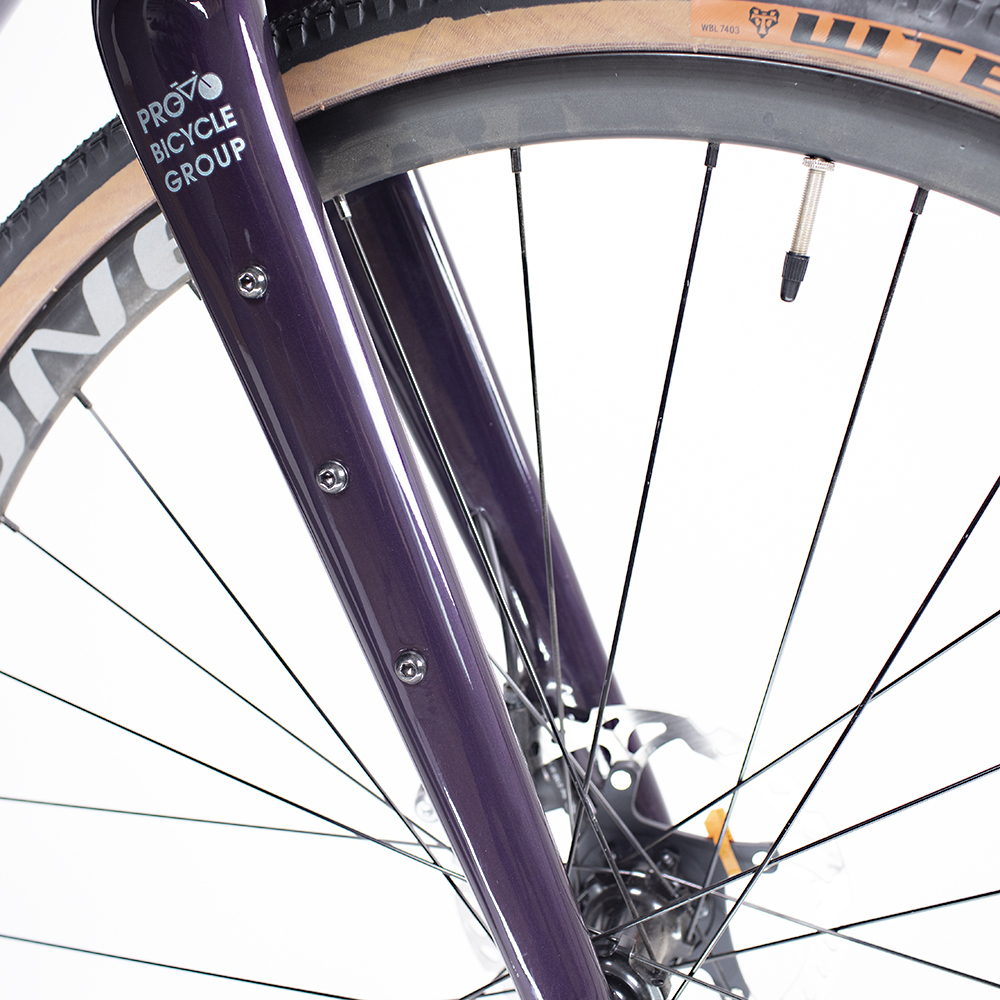

- Fork
- High quality carbon Japanese TORAYCA® fiber, tapered steerer, 15x100 aluminum thru-axle, inner cable lining
- Rear derailleur
- Shimano GRX RD-RX812, 11 speed
- Shifter
- Shimano GRX BL/ST-RX600, 1/11 speed
- Chain
- KMC X11

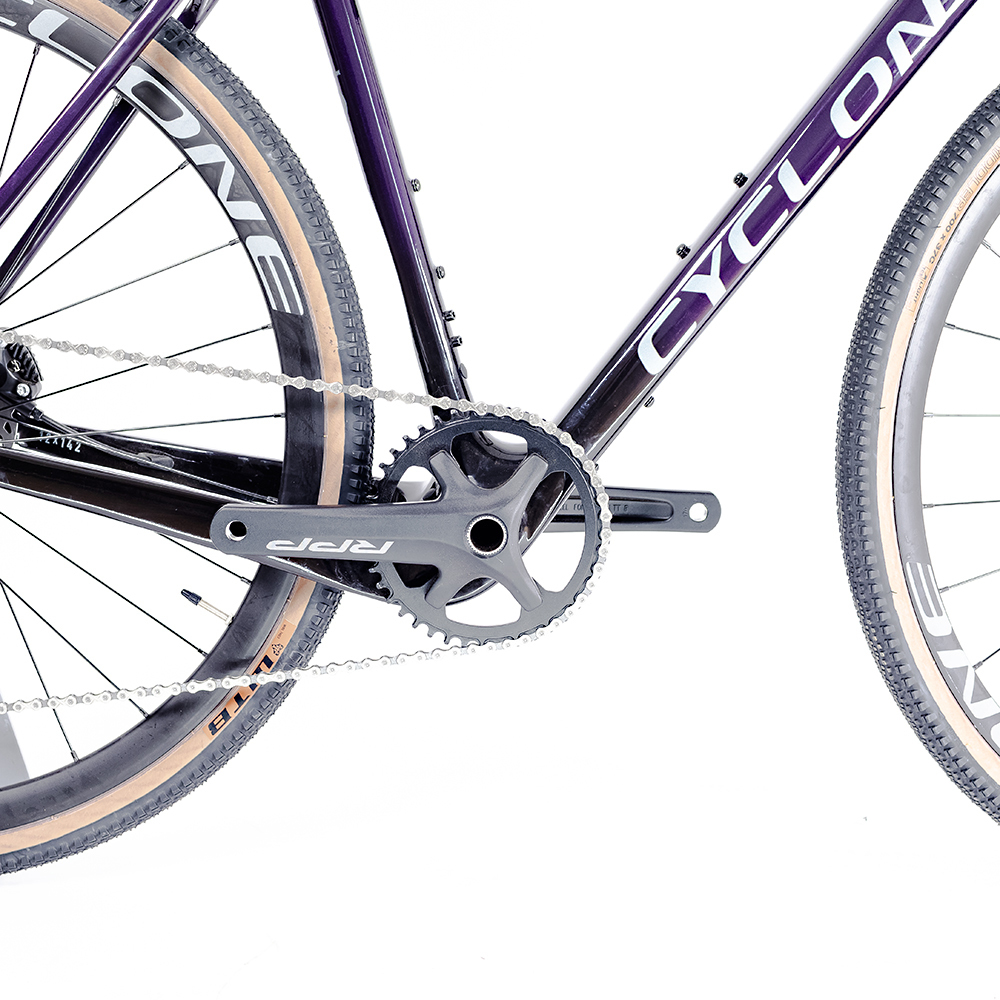

- Crankset
- Prowheel DMA, connecting rod length 175mm, 40T
- Cassete
- Shimano SLX CS-M7000, 11 speed, 11-42T

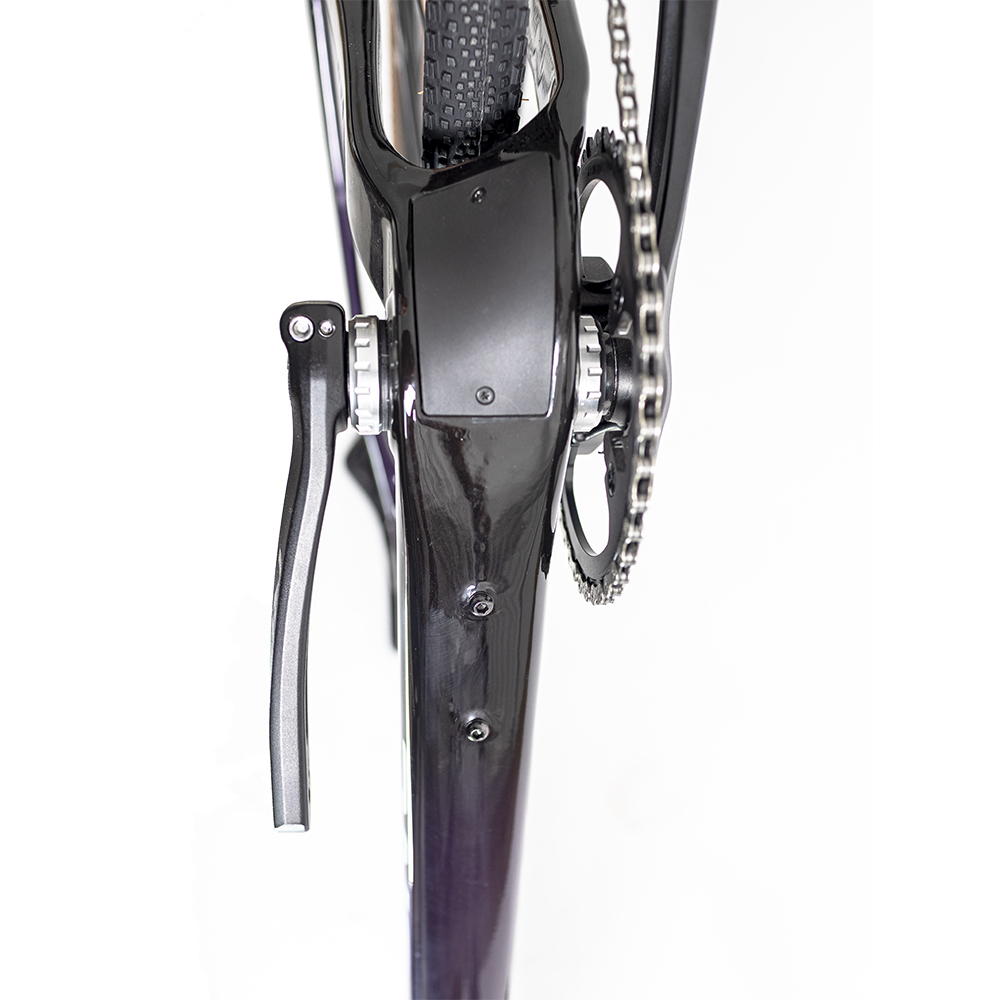

- Bottom bracket
- Shimano BSA 73mm.
- Brakes
- Shimano GRX BR-RX400, hydraulic discs, Shimano RT-76 rotor 180/160 mm
- Rims
- DR30, tubeless profile, 28sp
- Tires
- WTB Riddler 700C (37mm), can be used tubeless
- Hubs
- DH917TR front: 2 sealed bearings; rear: aluminum axle, aluminum drum, 6 pawls, 4 sealed bearings
- Handlebar
- Aluminum, ø31.8mm, width 460mm
- Stem
- Aluminum, ø31.8mm, length 70mm
- Seatpost
- Carbon, ø27.2mm, length 350mm
- Saddle
- Selle Royal
- Pedals
- VP-536
- Box Size
- 150 x 20 x 85см
Pro Bicycle Group reserves the right to make changes to the product package.
| № | Parameter | 52 | 54 | 56 | 58 |
| 1 | Top tube length | 520mm | 535mm | 550mm | 565mm |
| 2 | Seat tube | 490mm | 520mm | 540mm | 560mm |
| 3 | Seat tube angle | 74.5° | 74° | 73° | 73° |
| 4 | Head tube length | 120mm | 140mm | 150mm | 170mm |
| 5 | Head tube angle | 70.5° | 71° | 71.5° | 72° |
| 6 | Fork offset | 50mm | 50mm | 50mm | 50mm |
| 7 | Chain stay length | 435mm | 435mm | 435mm | 435mm |
| 8 | BB Drop | 67mm | 67mm | 67mm | 67mm |
| 9 | Wheelbase | 1020mm | 1027mm | 1027mm | 1037mm |
| 10 | Seat tube (clamp diameter) | 31.8mm | 31.8mm | 31.8mm | 31.8mm |
| 11 | Seat post | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| 12 | Stack | 537mm | 557mm | 568mm | 590mm |
| 13 | Reach | 371mm | 375mm | 376mm | 385mm |
Pro Bicycle Group reserves the right to make changes to the product package.
